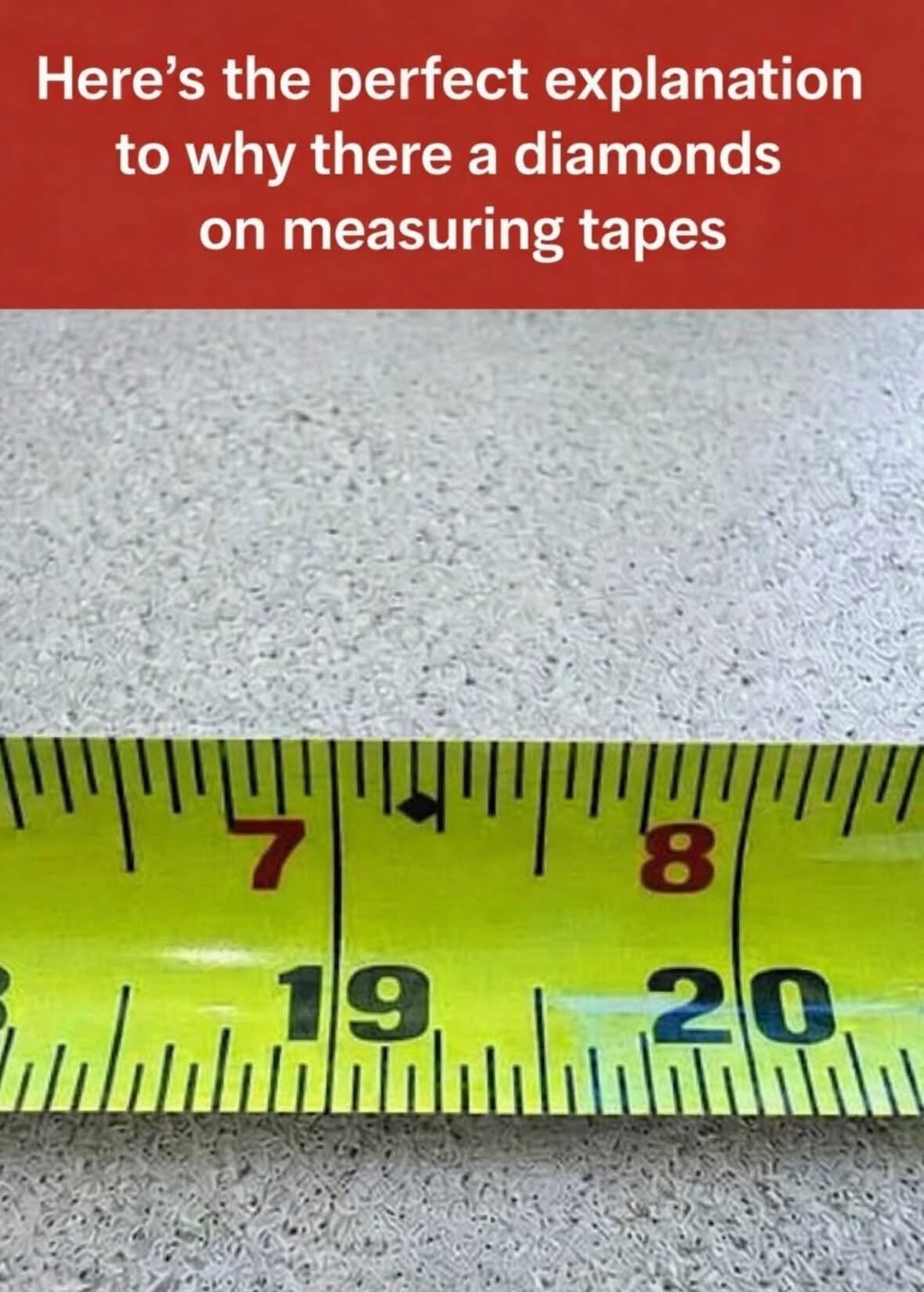

Most people use a measuring tape for everyday tasks like measuring furniture, checking wall space, or planning home decorations. However, if you examine a tape measure closely, you may notice small black diamond shapes that appear at regular intervals. While many people overlook these symbols, they actually serve an important purpose in construction and carpentry.
These black diamond shapes are known as truss marks or truss indicators. They are placed on most measuring tapes at intervals of 19.2 inches. Builders and carpenters use these markings to help determine where to place floor trusses or joists when constructing frameworks for floors, ceilings, or roofs.
The reason for this specific spacing comes from a standard construction measurement. Eight feet equals 96 inches, and when this length is divided into five equal sections, each section measures 19.2 inches. By placing supports at these intervals, builders can evenly distribute five joists or trussesacross an eight-foot span.
This method is useful because it works well with common building materials such as plywood, drywall, and other panels. Many construction materials are designed to align with standard framing measurements, so following these marks helps ensure that materials fit properly during installation.
Using the black diamond markings provides several benefits. First, it reduces the need for repeated calculations, allowing workers to measure and mark quickly. Second, the spacing can improve efficiency by using fewer structural supports while still maintaining stability and strength in the structure.
In addition to the diamond marks, tape measures often include other helpful indicators. Red numbers or highlighted sections commonly appear every 16 inches, showing the standard spacing used for wall studs. Together, these markings transform a simple measuring tape into a practical guide that helps builders maintain accuracy, consistency, and efficiency on construction projects.
